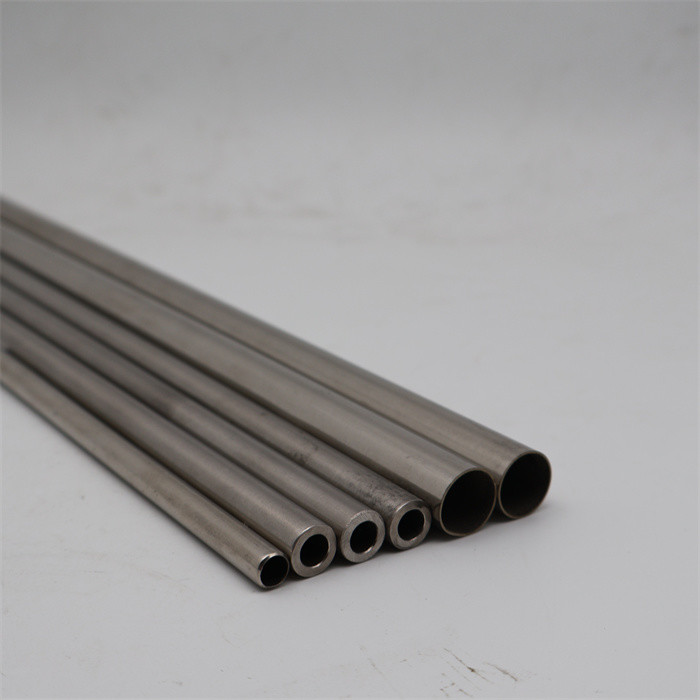

Custom OD 1/2"-12" 6.35-114.3mm Nickel Alloy Inconel 625 Pipe High Temperature Strength

CHANGZHOU LIANGRU INTERNATIONAL TRADE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Custom OD 1/2"-12" 6.35-114.3mm Nickel Alloy Inconel 625 Pipe High Temperature Strength

Brand Name : Runlai

Model Number : Inconel 625

Certification : ISO9001 ROHS

Place of Origin : China

MOQ : 10 Kg

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 tons per month

Delivery Time : 20~40 Days

Packaging Details : Package with polybag,then in woodencase

Product Name : Inconel 625 tube

Material : Ni Cr Fe

Ni (Min) : 50%

Density : 8.44 G/cm3

Melting Point : 1290-1350°C

Elongation (≥ %) : 30 %

Thermal Conductivity : 13.3 W/(m·K)

Yield Strength : 275 MPa

Tensile Strength : 620 MPa

Standard : ASTM, ASME

Application : Manufacturing exhaust systems, heat exchangers, reactors, piping systems, etc. for aircraft engines

Contact Now

Customized OD 1/2" - 12" And 6.35 To 114.3 Mm Nickel Alloy Inconel 625 Pipe With Excellent High-Temperature Strength


Product Introduction


Inconel 625 tube is a high-performance nickel chromium molybdenum niobium solid solution strengthened alloy tube with excellent high-temperature strength, oxidation resistance, and corrosion resistance. Its main components include nickel (over 58%), chromium (20% -23%), molybdenum (8% -10%), and niobium (3.15% -4.15%), which endow Inconel 625 tube with excellent corrosion resistance, especially in high temperature and corrosive environments. Inconel 625 tube maintains good mechanical properties, including high strength and creep resistance, even at temperatures up to 1300 ° F (700 ° C). Its excellent corrosion resistance makes it perform well in various corrosive environments, including seawater, acidic solutions, and alkaline solutions. Inconel 625 tube is widely used in aerospace, chemical, marine engineering, oil and gas industries, and is used to manufacture key components such as exhaust systems, heat exchangers, reactors, and piping systems for aircraft engines.



Parameter


Chemical Properties of Inconel 625



Item C Mn Fe P S Si Cu Ni Co Al Ti Cr Nb+Ta Mo B
Inconel 625 ≤0.08 ≤0.35 rest -- ≤0.015 ≤0.35 ≤0.3 50-55 ≤10 ≤0.8 ≤1.15 17-21 4.75-5.5 2.8-3.3 --



AMS Number Alloy Type UNS Cross Ref. Spec Misc./Shape
AMS 5581 Inconel 625 Nickel N06625
AMS 5581 Custom Tube Inconel 625 Nickel N06625 - Custom Tube
AMS 5581 Tubing Inconel 625 Nickel N06625 - Tubing
AMS 5599 Inconel 625 Nickel N06625
AMS 5599 Plate Inconel 625 Nickel N06625 - Plate
AMS 5599 Sheet Inconel 625 Nickel N06625 - Sheet
AMS 5599 Strip Inconel 625 Nickel N06625 - Strip
AMS 5666 Inconel 625 Nickel N06625
AMS 5666 Bar Inconel 625 Nickel N06625 - Bar
AMS 5666 Custom Tube Inconel 625 Nickel N06625 - Custom Tube
AMS 5666 Forging Inconel 625 Nickel N06625 - Forging
AMS 5666 Ring Inconel 625 Nickel N06625 - Ring
AMS 5869 Inconel 625 Nickel N06625
AMS 5869 Plate Inconel 625 Nickel N06625 - Plate
AMS 5869 Sheet Inconel 625 Nickel N06625 - Sheet
AMS 5869 Strip Inconel 625 Nickel N06625 - Strip



Size Range (mm)
Wire
0.5-7.5
Rod/Bar
8.0-200
Strip
(0.50-2.5)*(5-180)
Tube
custom made
Plate
custom made



Specific Applications


Inconel 625 Tube, as a high-performance nickel based alloy, has excellent corrosion resistance and high-temperature strength, and is widely used in the following major industrial fields:

  1. Aerospace:Key components such as combustion chambers, turbine blades, and high-temperature exhaust systems used in the manufacturing of aircraft engines require stability and durability in extreme working environments, greatly improving the safety and reliability of the aircraft.
  2. Petrochemical industry:In refineries and chemical plants, many equipment and pipelines need to withstand the erosion of high temperature, high pressure, and corrosive media. Inconel 625 Tube has become an ideal material for manufacturing these devices and pipelines due to its excellent corrosion resistance, high temperature strength, and good processability.
  3. oceanographic engineering:In marine environments, metal materials are often plagued by corrosion from seawater and adhesion from marine organisms. Inconel 625 Tube has become an indispensable material in marine engineering due to its excellent corrosion resistance and wear resistance.
  4. Nuclear Energy Engineering:Inconel 625 Tube is widely used in the manufacturing and maintenance of nuclear reactors due to its excellent radiation resistance and high temperature strength.



Advantages and Characteristics


  • Excellent corrosion resistance:Inconel 625 has excellent corrosion resistance to various corrosive media in oxidizing and reducing environments, especially in chloride media, with outstanding resistance to pitting corrosion, crevice corrosion, intergranular corrosion, and erosion.
  • Excellent high-temperature strength:Inconel 625 can maintain good mechanical properties in high temperature environments, with a tensile strength of up to 650 N/mm ² after annealing treatment, a yield strength of up to 300 N/mm ², and an elongation of up to 30%. At a high temperature of 700 ° C, its tensile strength can still be maintained above 500 MPa.
  • Good processing performance:Inconel 625 has excellent cold forming characteristics and can be processed through common processing techniques such as forging, rolling, bending, etc. Although its high-strength characteristics make mechanical processing relatively difficult, the manufacturing of complex components can still be achieved through reasonable processing techniques and tool selection.
  • Excellent welding performance:Inconel 625 has good welding performance, low sensitivity to hot cracks during welding, and is less prone to defects such as cracks and holes after welding.

Contact Us

Email:fbwlau@cnrunlai.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service



Related Questions and Answers


What are the physical properties of Inconel 625 Tube?
Answer: The density of Inconel 625 Tube is 8.4 g/cm ³, and its melting point is 1290-1350 ° C.


What are the mechanical properties of Inconel 625 Tube?
Answer: The tensile strength of Inconel 625 Tube in the solid solution state is 760 N/mm ², the yield strength is 345 N/mm ², the elongation is 30%, and the Brinell hardness is ≤ 220.


What is the corrosion resistance of Inconel 625 Tube?
Answer: Inconel 625 Tube has excellent corrosion resistance to various corrosive media in both oxidizing and reducing environments, especially exhibiting outstanding resistance to pitting corrosion, crevice corrosion, intergranular corrosion, and erosion in chloride media.


How is the processing and weldability of Inconel 625 Tube?
Answer: Inconel 625 Tube has good processability and weldability, and is not sensitive to post weld cracking.
